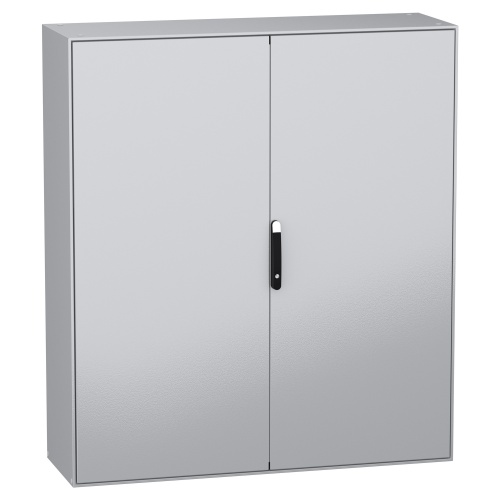

Schneider Electric NSYSM1816502D Spacial SM Floor-standing Sheet Steel Enclosure – , 70.87″ x 62.99″ x 19.69″ (HxWxD)
$1,885$2,262 (-17%)
Schneider Electric Spacial SM is a floor-standing enclosure made of body and door sheet steel, with a solid door opening on the front. It features a 4-point lock with a handle insert, and a standard gland plate. The enclosure is gray (RAL 7035) with a black (RAL 9005) handle.
Schneider Electric Spacial SM is a floor-standing enclosure made of body and door sheet steel, with a solid door opening on the front. It features a 4-point lock with a handle insert, and a standard gland plate. The enclosure is gray (RAL 7035) with a black (RAL 9005) handle.
Specifications
| Enclosure Mount Type | Free-Standing |
|---|---|
| Enclosure Number of Doors | 2 Door |
| Enclosure Depth | 19.69" |
| Manufacturer | Schneider Electric |
| Enclosure Width | 62.99" |
| Enclosure Height | 70.87" |
| Enclosure Door Type | Solid |
| Enclosure Composition | Steel |
| Component | Steel Enclosure |
| Enclosure Mounting Plate | Without Mounting Plate |
| Line | Spacial SM |
| Enclosure Gland Plate | Standard |
| Enclosure Latch Type | 4-Point Lock |
Features

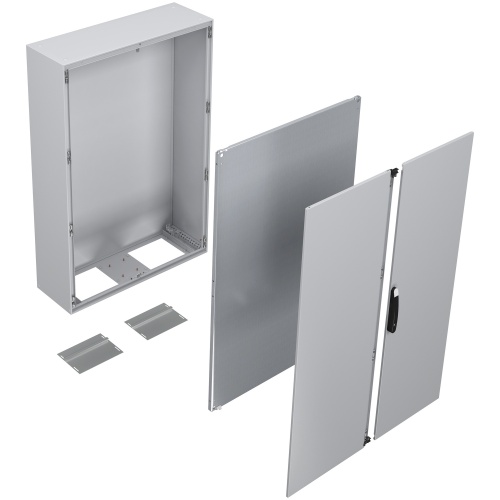

Spacial SM monobloc compact steel enclosure with 2 plain front doors

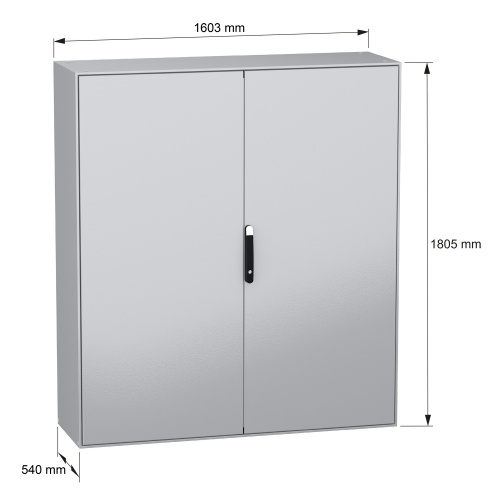

1799 x 1600 x 500 mm
Back panel welded, without mounting plate
4-Point door locking system with handle DB 5mm
Steel made
Protection IP 55, IK10, Grey RAL 7035

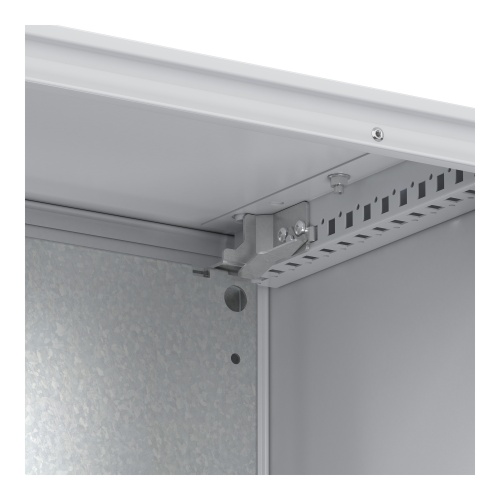

4 mounting plate support brackets and 2 parts cable gland plate included.
