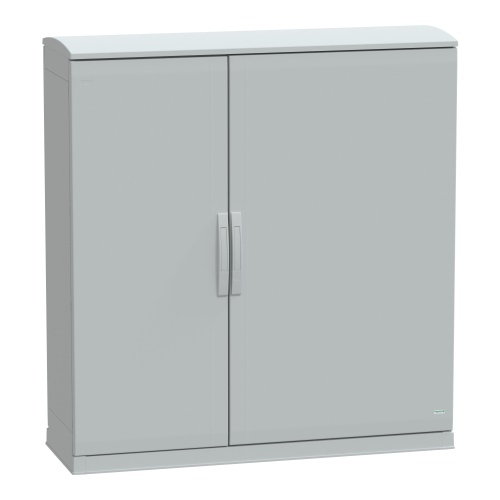

Schneider Electric NSYPLAZT12124G Thalassa PLA Floor-standing Fiberglass Reinforced Polyester Enclosure – IP44, 49.21″ x 49.21″ x 16.54″ (HxWxD)
$1,317
Schneider Electric NSYPLAZT12124G Thalassa PLA enclosure is a floor-standing, suitable enclosure made of polyester reinforced with fiberglass. It features a 4-point lock with a handle and 5mm double bar insert, and has a solid front door that opens on both the right and left sides. This enclosure provides…
Schneider Electric NSYPLAZT12124G Thalassa PLA enclosure is a floor-standing, suitable enclosure made of polyester reinforced with fiberglass. It features a 4-point lock with a handle and 5mm double bar insert, and has a solid front door that opens on both the right and left sides. This enclosure provides accessibility for operation from the front, top, bottom, and rear. With a nominal depth of 16.54 in (420 mm), height of 49.21 in (1250 mm), and width of 49.21 in (1250 mm), it offers ample space for various applications. The Thalassa PLA enclosure also provides electrical insulation of Class II and IK10 degree of protection against impact. Additionally, it has a high fire resistance of 1760 °F (960 °C).
Specifications
| Enclosure Mount Type | Free-Standing |
|---|---|
| Enclosure Number of Doors | 2 Door |
| Manufacturer | Schneider Electric |
| Enclosure Height | 49.21" |
| Enclosure Door Type | Solid |
| Component | Non-Metallic Enclosure |
| Line | Thalassa PLA |
| Enclosure Width | 49.21" |
| Enclosure Depth | 16.54" |
| Enclosure Composition | Fiberglass Reinforced Polyester |
| Enclosure Impact Rating | IK10 |
| Enclosure Latch Type | 4-Point Lock |
Features
Fiberglass reinforced polyester floor-standing enclosure.
Suitable for indoor or outdoor use.
Harsh environment resistant.
Long life durability in a wide range of temperatures.
Version with canopy, maintaining the quality of the seal outdoors.
Version with integrated plinth and open bottom for easy cable entry.
