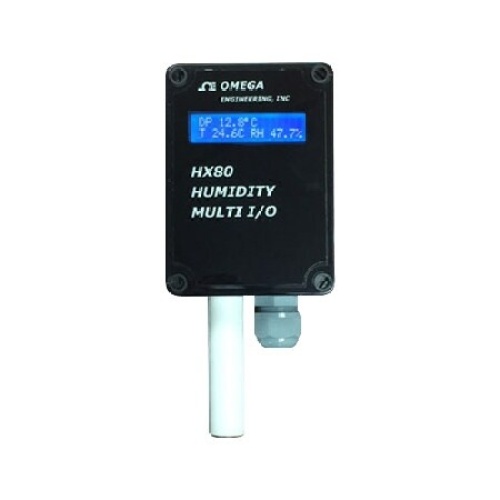

Omega HX86A-W WALL MOUNT TEMP/RH/DP XTR
$1,620$1,944 (-17%)
Relative Humidity/Temperature/Dew Point Transmitter, 0 % to 100 %, -40 °C to 120 °C, -60 °C to 40 °C, 18 Vdc to 30 Vdc, 4 mA to 20 mA, Relays, RS232 Output, Wall Mount, HX80A Series, Each
Relative Humidity/Temperature/Dew Point Transmitter, 0 % to 100 %, -40 °C to 120 °C, -60 °C to 40 °C, 18 Vdc to 30 Vdc, 4 mA to 20 mA, Relays, RS232 Output, Wall Mount, HX80A Series, Each
Specifications
| Conditioner Output Signal Range | 4-20 Ma |
|---|---|
| Manufacturer | Omega Engineering |
| Conditioner Supply Voltage | 18-30 Vdc |
| Component | Relative Humidity/Temperature/Dew Point Transmitter |
Features
316 SS Housing
± 1% RH Accuracy
± 0.5°C (1.0°F) Temperature Accuracy
High Temperature [120°C (248°F)]
Accuracy± 0.5 °C (± 0.9 °F)
Cable Length1.8 m
Data InterfaceRS232
Data Interface NoteRS232C (bi-directional) to DTE device, 19.2 kilo baud, 8 bits data, 1 stop bit, no parity
FilterSinter Stainless Steel
Current, Max50 mA
Pressure LimitsUp to 690 psi
Pressure Note317 kg (700 lb) (47.6 bar)
Probe Diameter19 mm
Probe Length203 mm
Process Connection Size3/4 in
Process Connection TypeNPT Male and Female
Relative Humidity5 to 95%
Relative Humidity Accuracy± 1.0 % RH
Sensor MaterialStainless Steel
Supply Voltage18 to 30 Vdc
Temperature Measurement, Max120 °C
Temperature Measurement, Min-20 °C
Time Constant<15 sec, air flow dependent (for 66.6% response)
Weight0.9 kg
